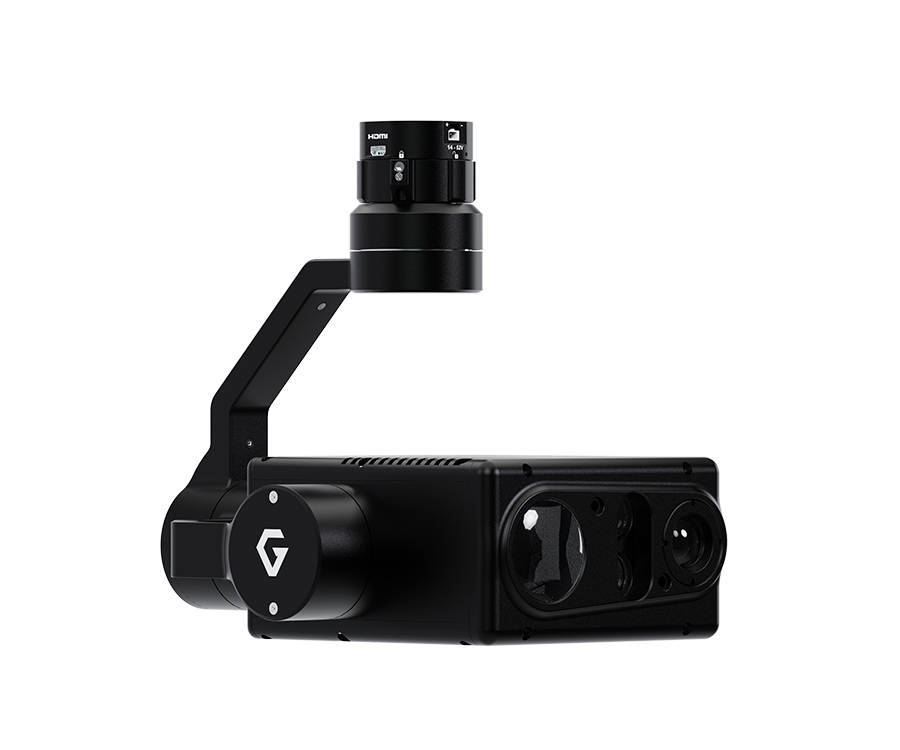

VIO F1, among VIO Series, a NDAA compliant payload featuring a 4K zoom EO sensor, a 640 x 512 radiometric thermal camera from Teledyne FLIR and an integrated 2400m laser rangefinder. Gremsy's VIO F1 is proudly included as part of the Thermal by FLIR program which allows users to benefit from reliable thermal imaging solutions for various applications such as inspection, industrial diagnostics, public safety.
Specifications:
| Product Name | Vio F1 |
|---|---|
| Payload Weight | 854g (1.88 lbs) |
| Payload Dimensions (DxWxH) | 173mm x 148mm x 159mm |
| Supported Drone Platforms | Pixhawk/CubePilot/Skynode |
| EO Camera | Powered by Sony Block 4K Camera |
| IR Camera | Vio F1: Powered by Flir Boson 640 R |
| Laser Rangefinder Range | 0 - 3000m (1Hz) 0 - 1250m (10Hz) |
| Payload Control Method | UART/Ethernet SBUS (updating with expansion board) |
| Supported Controllers | Ground Station/Remote with + QGroundControl app + Gremsy Payload Assistant App |
VIO F1
SKU: 20G998-001
$12,999.00Price
Give us a call 813-575-2160
- Vio Payload x1
- Vio Damping x1
- Vio/Zio/Mio Quick Release x1
- USB Type A to USB Type C x1
- Micro USB cable x1
- Vio CTRL Cable x1
- Power Cable x2
- Micro SD Card SDXC I, 128GB x1
- M2 x 4 - ISO 4762 x4
- M3 x 6 - ISO 4762 x4
- M3 x 6 - DIN 7991 x4
- Allen Key 1.5mm x1
- Allen Key 2.0mm x1
- Allen Key 2.5mm x1
- Thermal Lens Focus Tool x1
